2-Channel Fiber to 3G-SDI Receiver

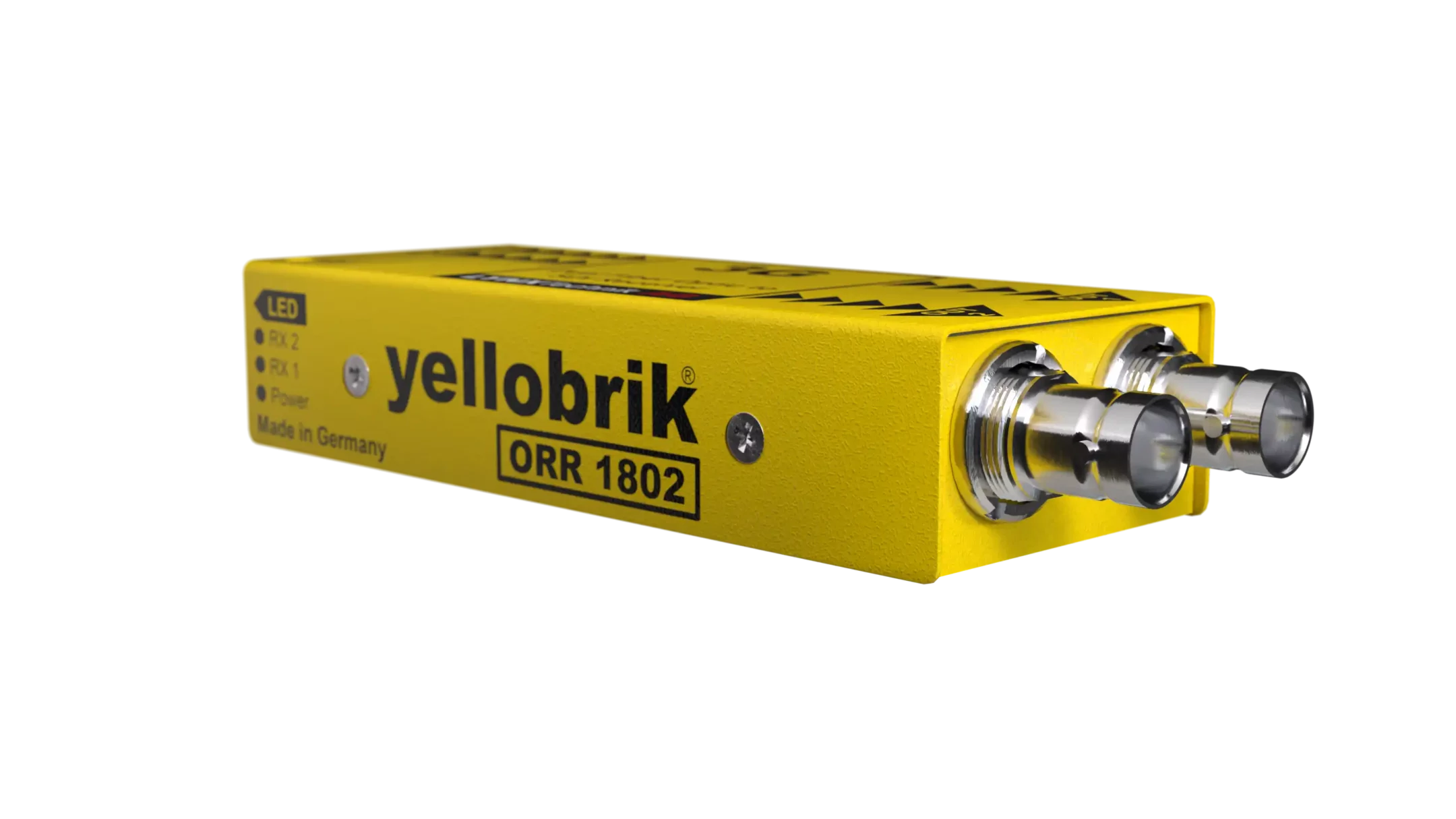

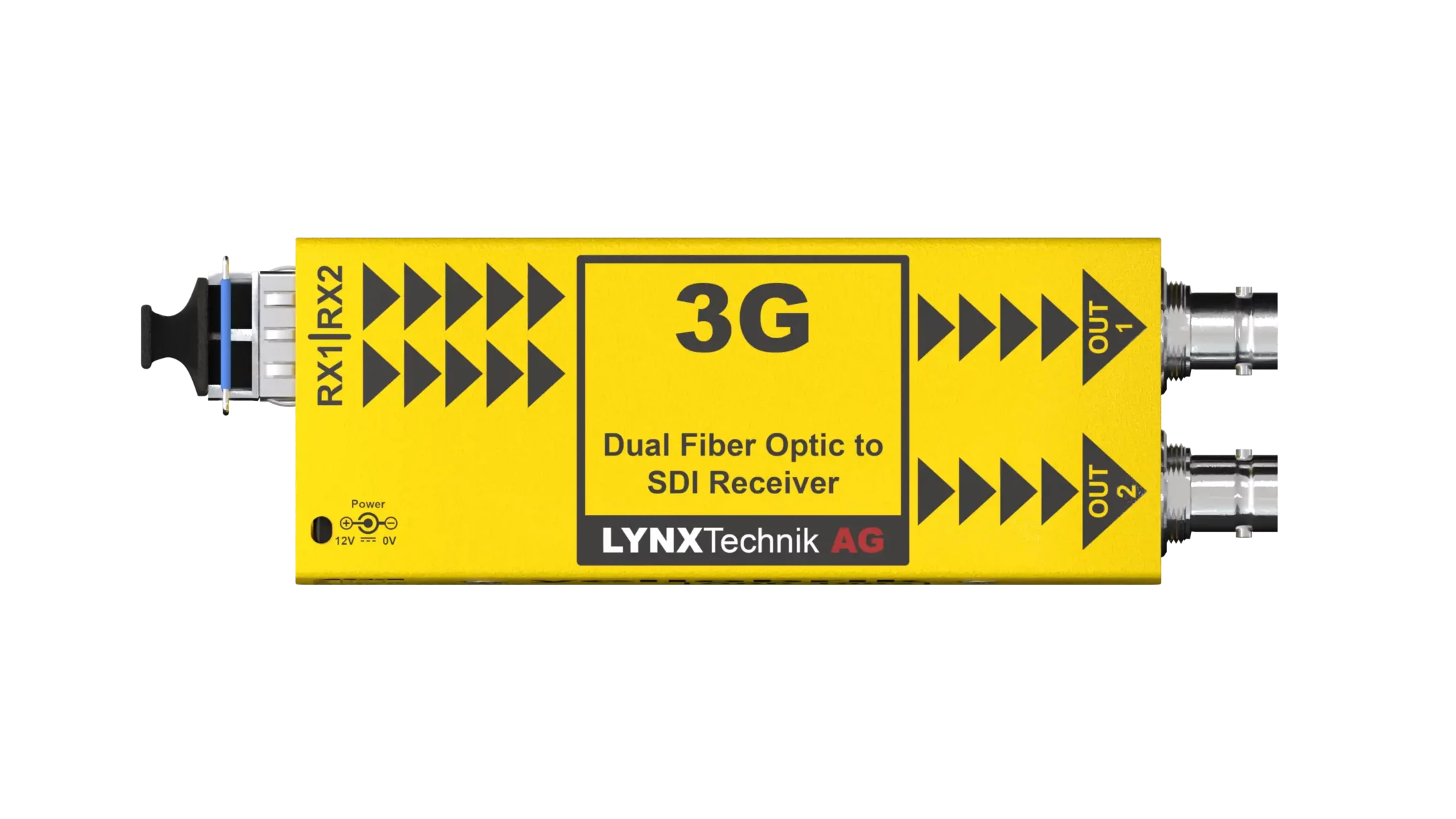

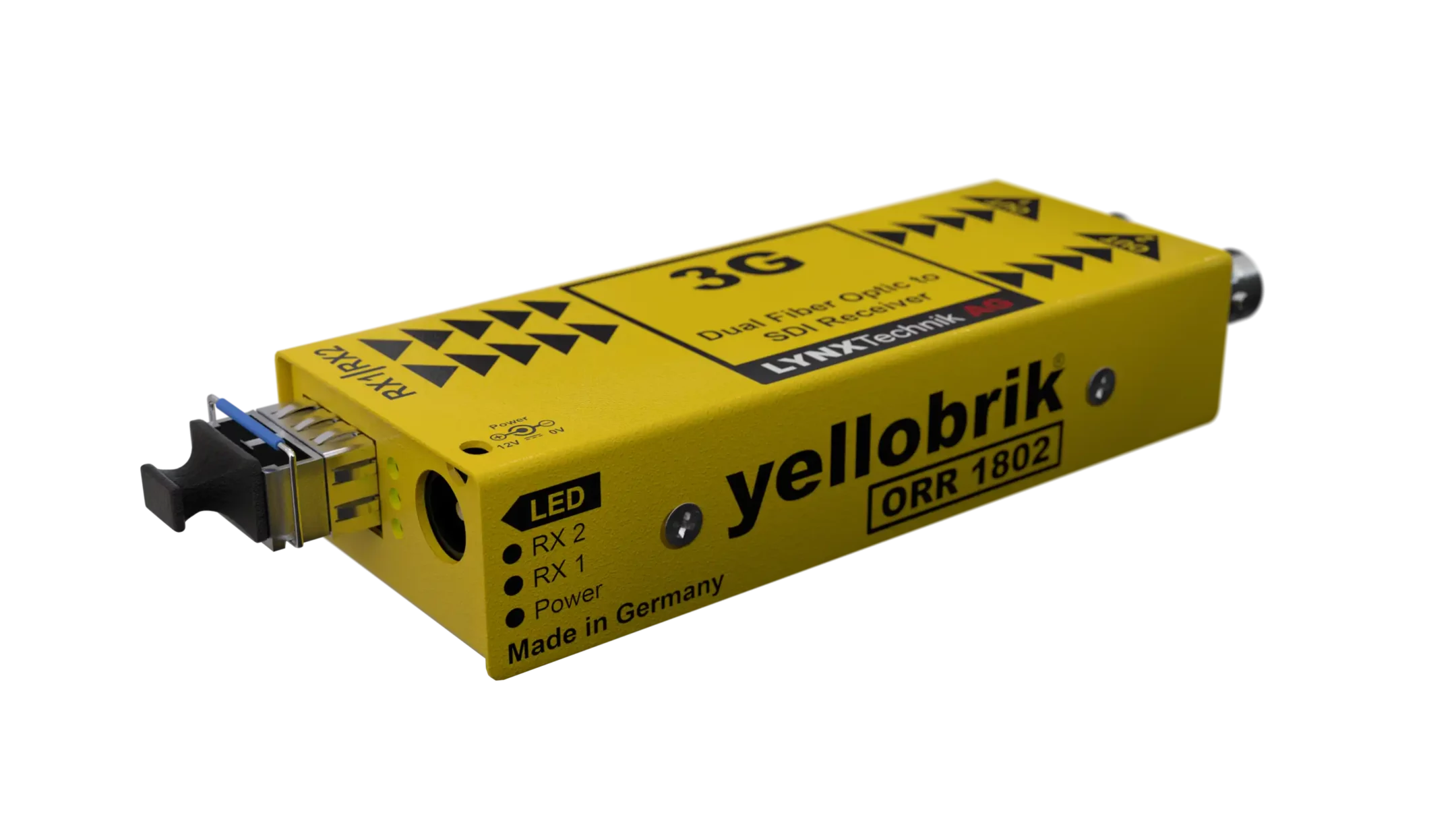

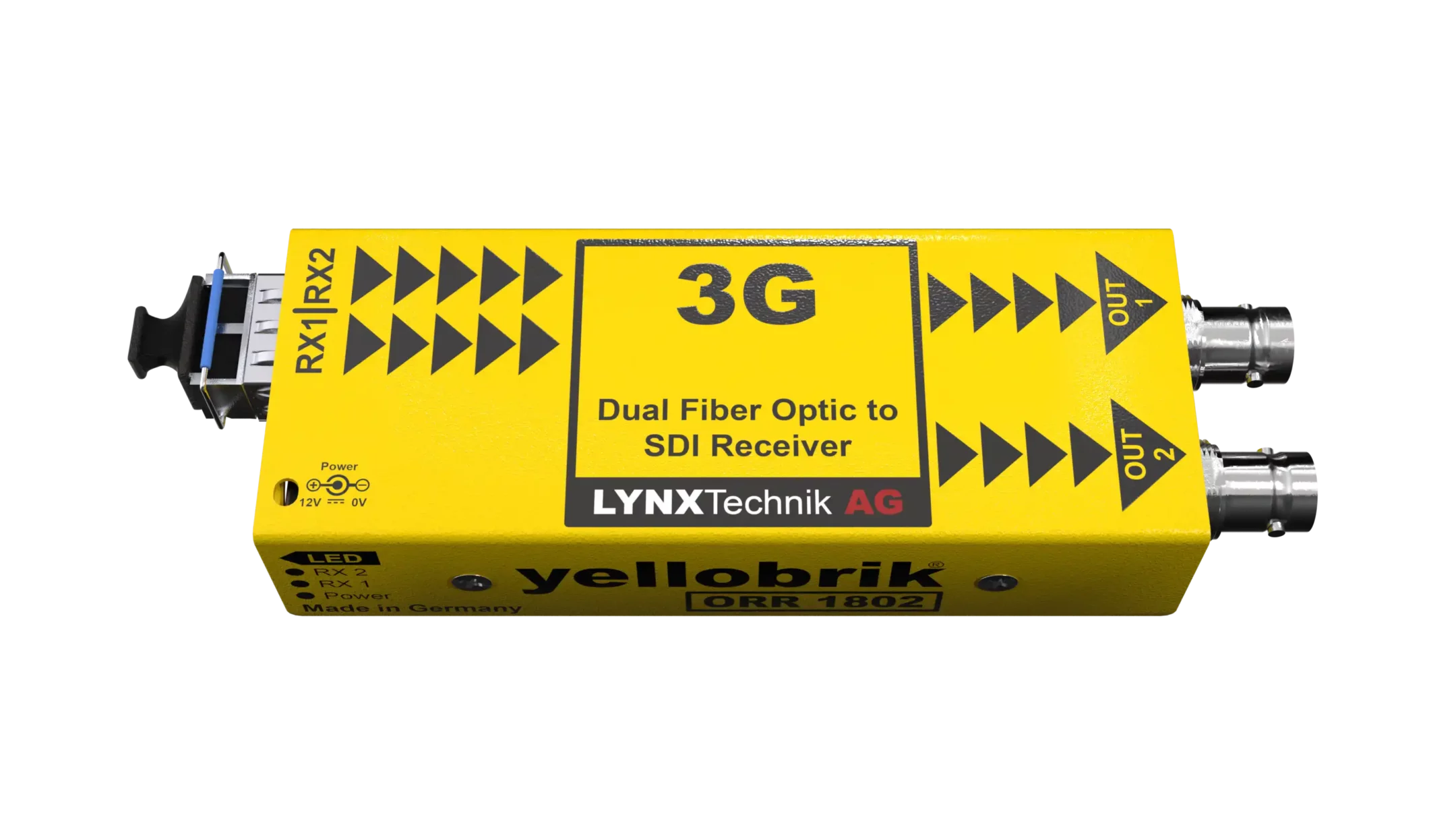

The ORR 1802-2 is a compact 2-Channel Fiber to 3G-SDI receiver designed to overcome distance limitations in the distribution of uncompressed, broadcast-quality video signals. When paired with a compatible 3G-SDI optical transmitter (such as the yellobrik OTT 1812-1 or OTX 1812), it delivers a cost-efficient optical transmission and reception solution for 3G-SDI signals up to 1080p60, ensuring pristine, uncompressed image quality.
The ORR 1802-2 has two completely independent 3G-SDI channels. Each will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s and 3Gbit/s SDI fiber source before converting it to electrical SDI. The module is fully compatible with 3G Level A and Level B formats and accepts both 1310 nm single-wavelength and CWDM optical inputs.
As with all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.
Key Features
2-Channel 3G-SDI Receiver
Support 3G/1.5G-SDI Standards
Auto Reclocking
Error free optical reception
1260nm to 1620nm wavelength input range
Compatible with Standard 1310 nm and CWDM optical inputs

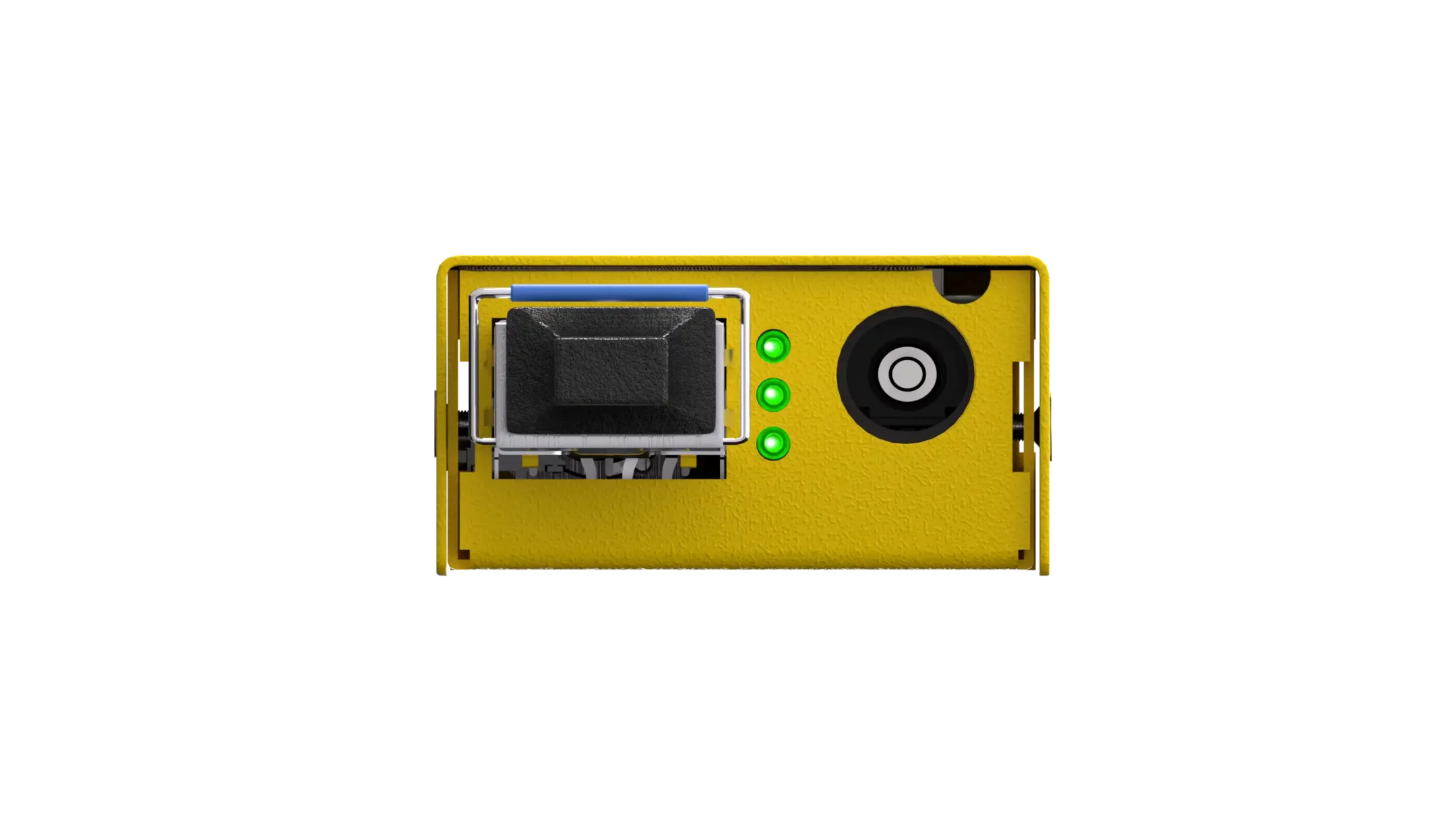

Duplex LC/PC Single-mode fiber connection
Supports hot swapping and hot plugging
