OTX 1812

3G-SDI to Fiber Transmitter

Datasheet

Quick Reference

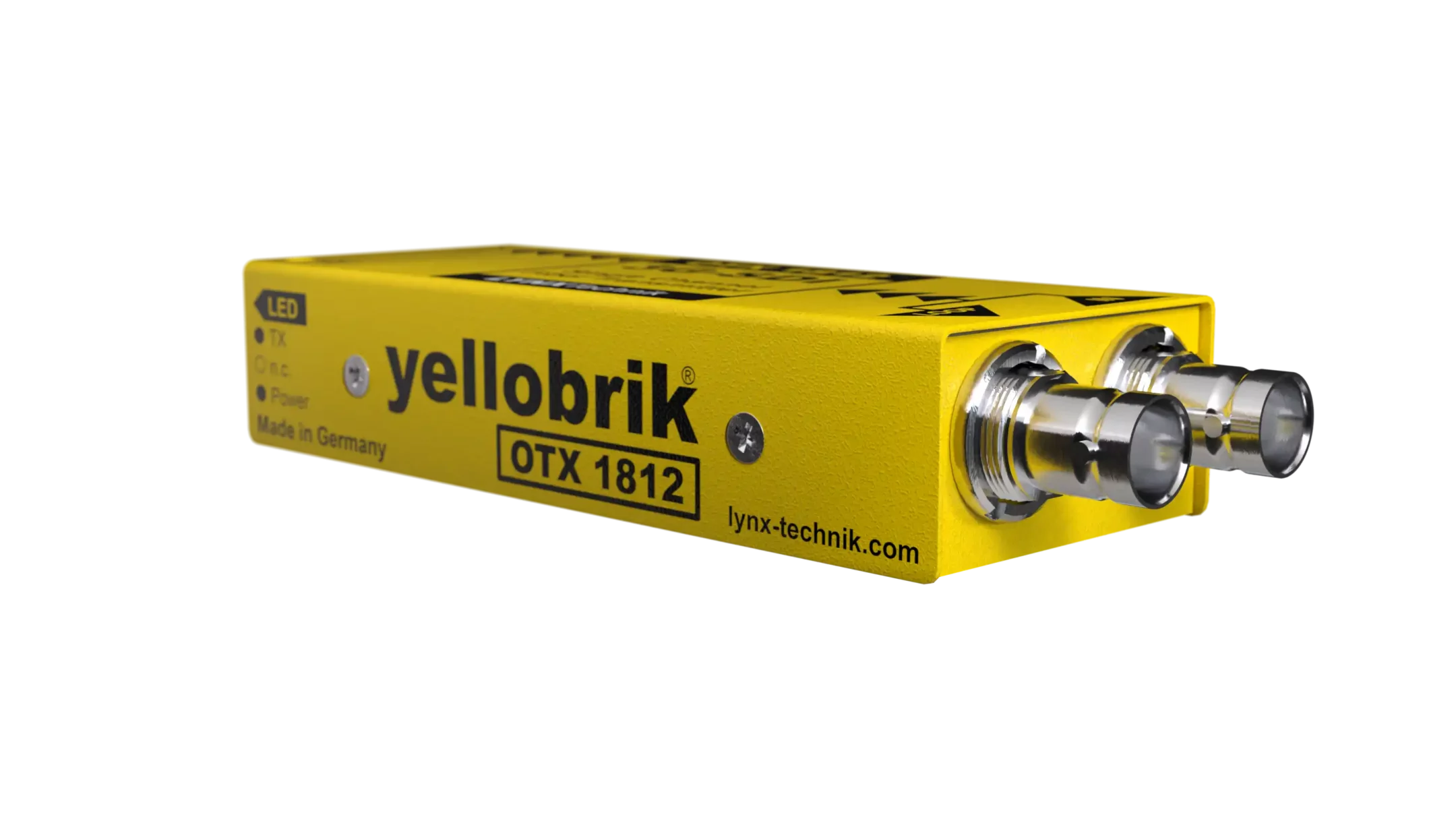

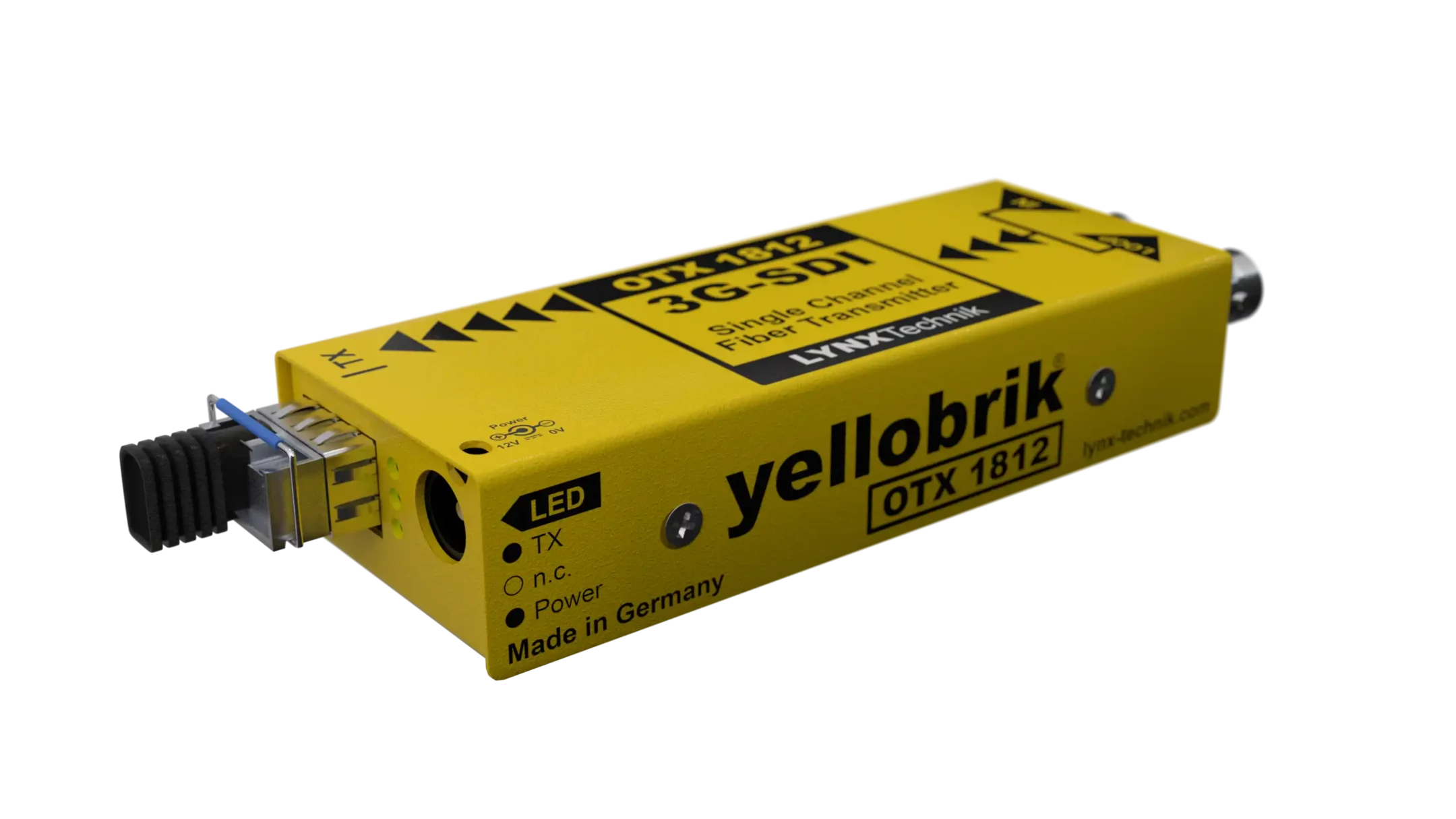

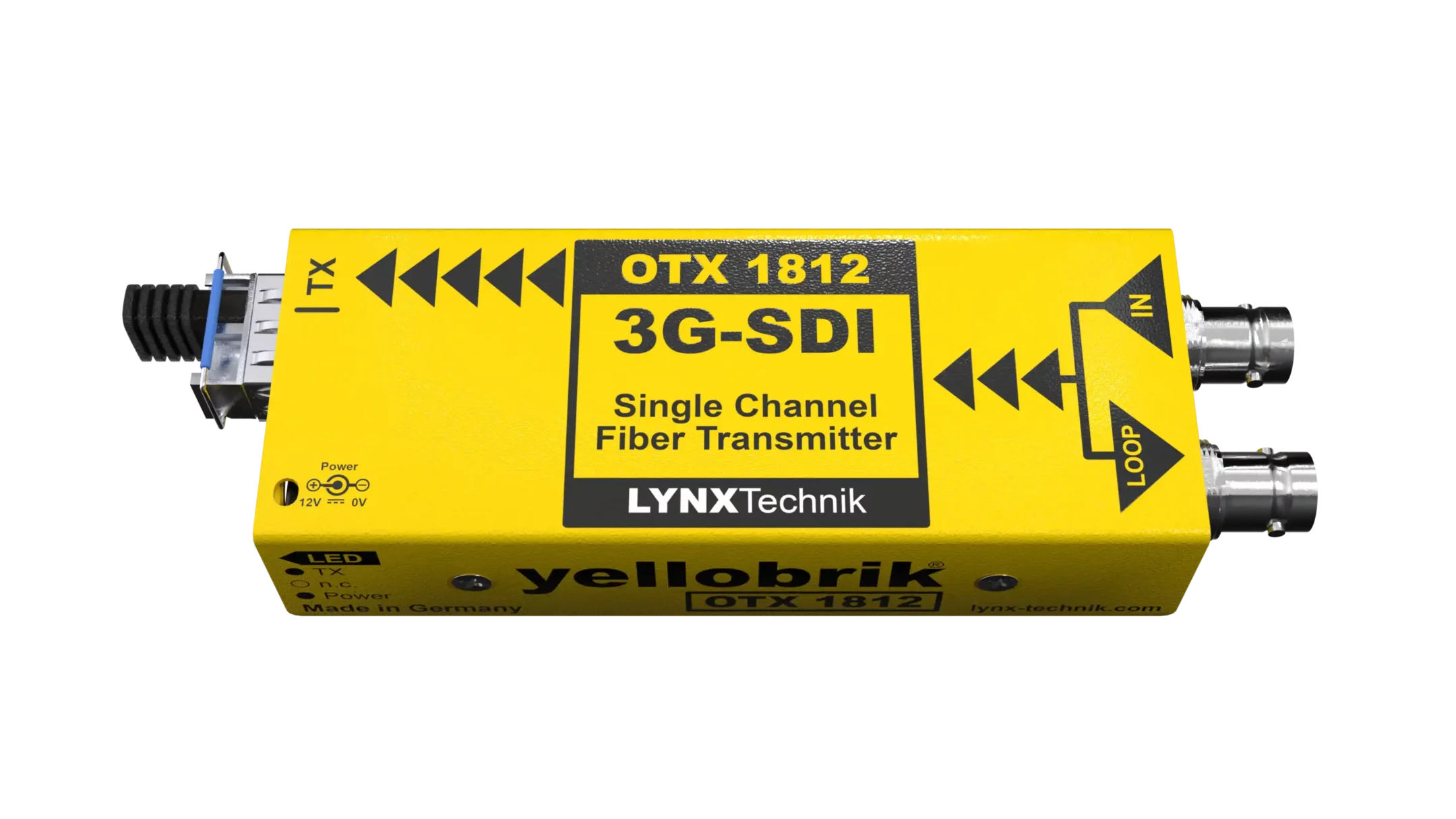

The OTX 1812 is a compact 3G-SDI to fiber transmitter designed to overcome the limitations involved with the distribution of uncompressed broadcast quality video signals over long distances. When paired with a fiber to 3G-SDI receiver (e.g. yellobrik ORX 1802) it becomes a cost effective optical transmission / receiver system for 3G-SDI signals up to 1080p60.

The OTX 1812 provides a looping 3G-SDI input and support for LC, ST or SC single-mode fiber connections as well as LC version suitable for multi-mode fiber. It will auto-detect and re-clock any 270Mbit/s, 3G/1.5G/SD-SDI source prior to optical transmission. The module is fully compatible with 3G Level A and Level B formats. It can be pre-assembled with a Single-mode 1310 nm or Multi-mode SFP. CWDM SFPs support significantly longer optical distances and must be ordered separately with the required operating wavelength.

As with all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.

Key Features

Support 3G/1.5G/SD-SDI Standards
Auto Reclocking
Error free optical transmission

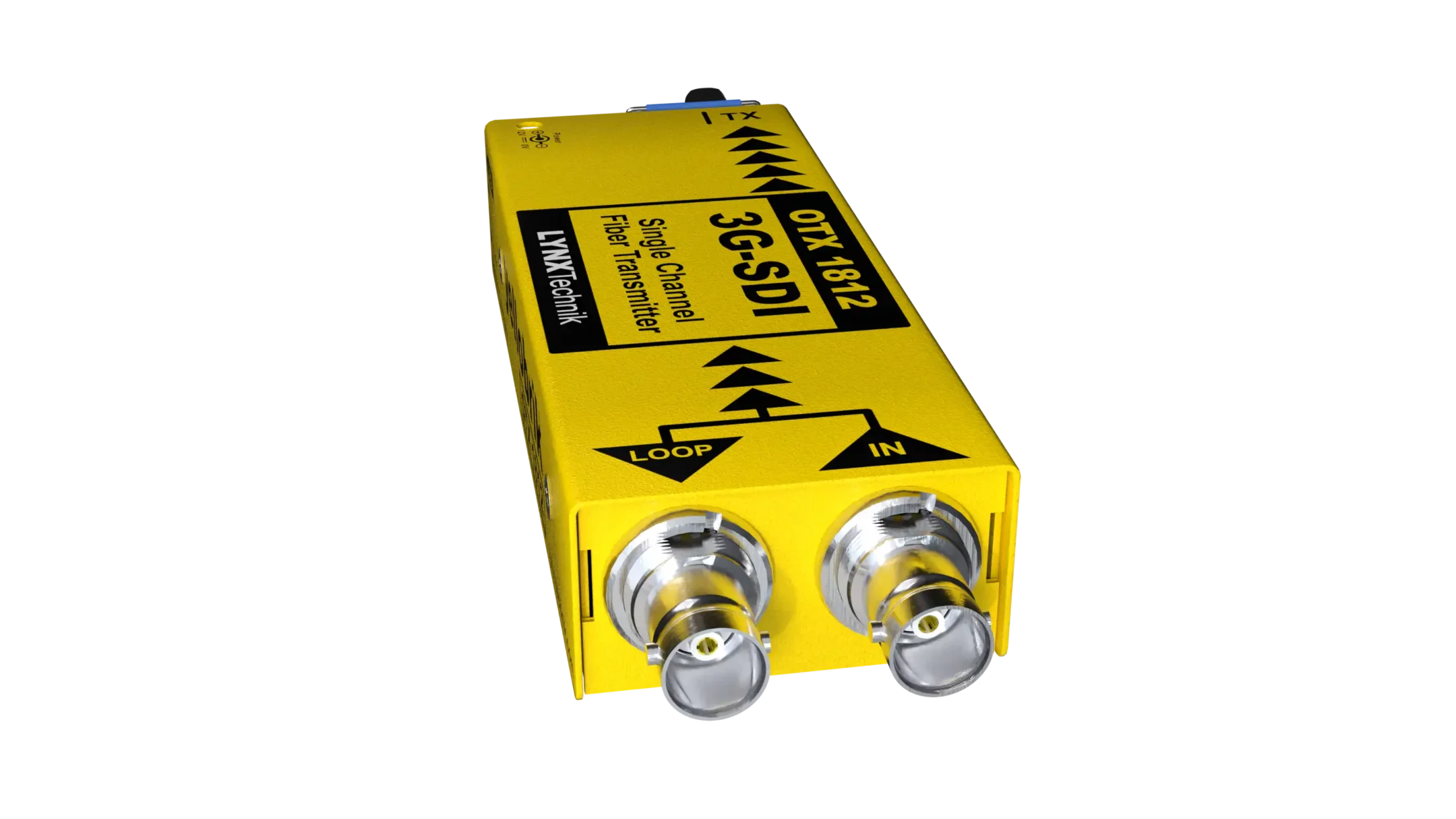

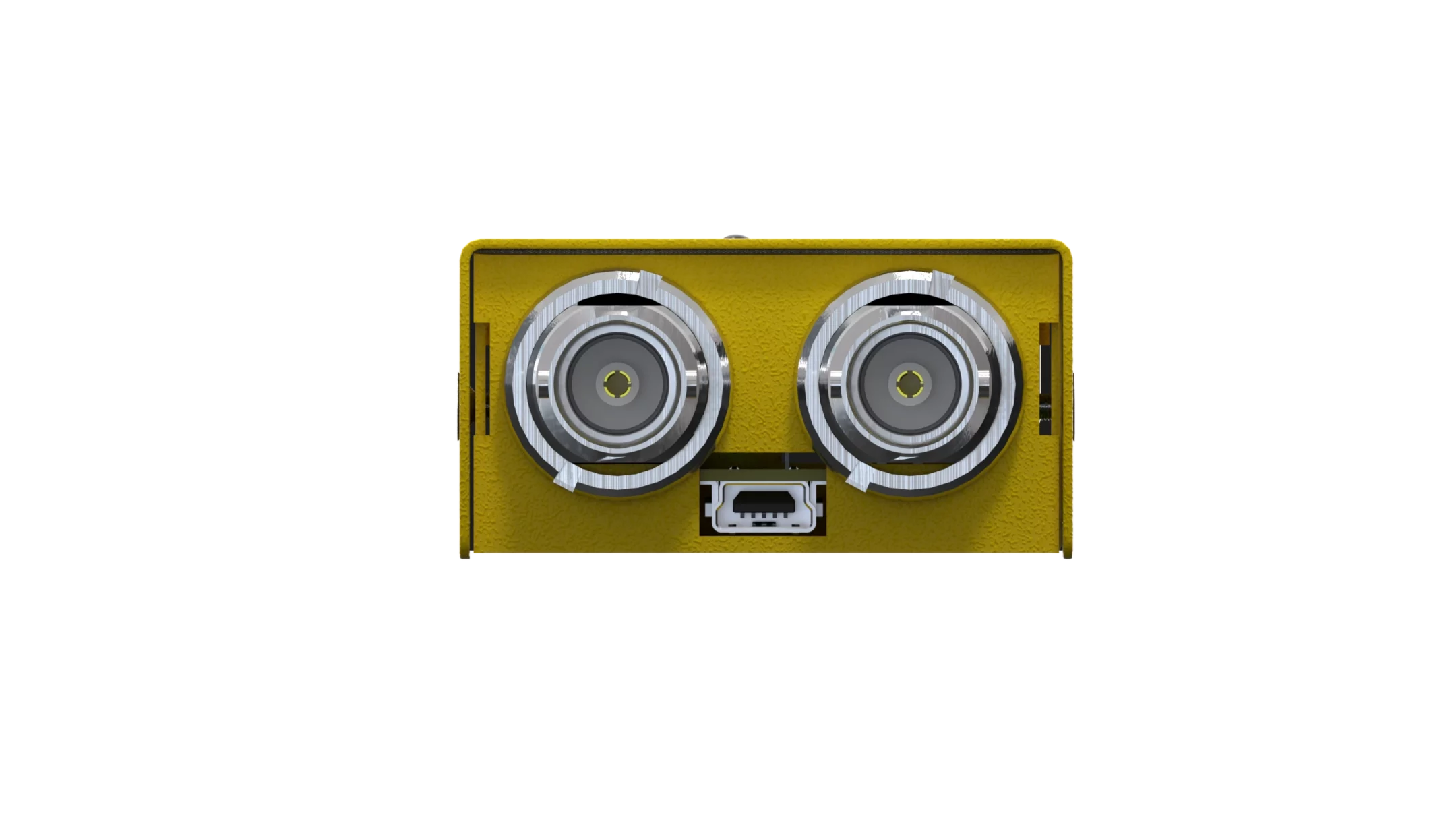

Reclocked SDI loop out connection
LC/ST/SC fiber connections
Standard 10 nm, CWDM and Multi-mode SFP options
Up to 10/40/80km (6.2/25/50 miles) @ 3Gbit/s (Single-mode)
Up to 300m (1000 feet) @ 3Gbit/s (Multi-mode)
Supports hot swapping and hot plugging

Video Formats

 • 3G-SDI
 • 1.5G-SDI
 • SD-SDI

Format agnostic

Video Input Digital

1x 3G-SDI BNC (3G/1.5G/SD-SDI)
YCbCr 4:4:4/4:2:2/4:2:0
8, 10, 12-bit
3G-SDI Level A or B Dual Link

Fiber I/O

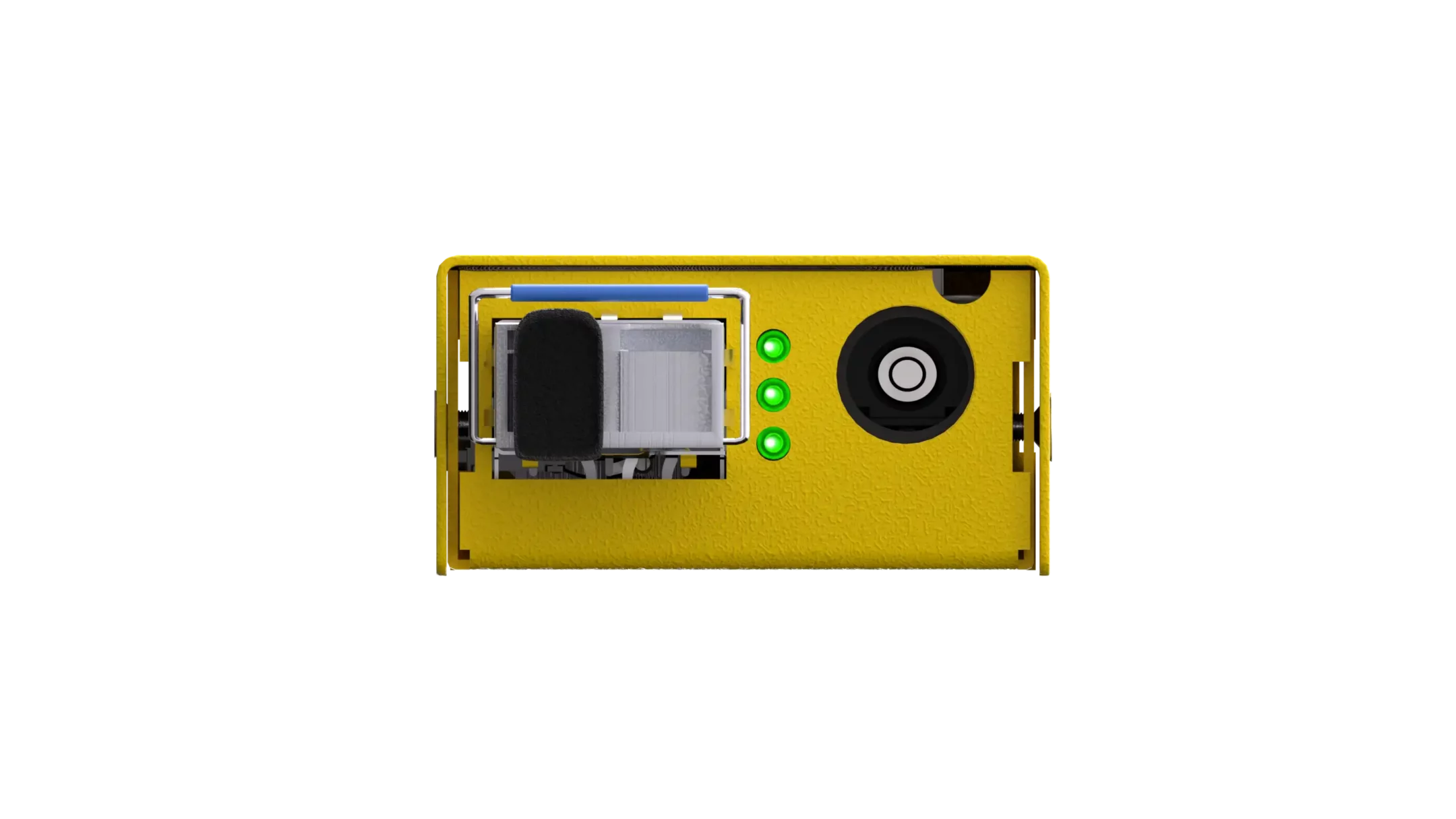

1x Fiber Transmitter SFP:
OH-TX-1 LC/SC/ST for single 1310nm
OH-TX-0-850-MM for multi-mode
OH-TX-4-XXXX-LC or OH-TX-8-XXXX-LC for CWDM fiber
3G-SDI
Simplex, Single-mode, Multi-mode or CWDM
LC/PC, ST/PC or SC/PC connection

3G-SDI Simplex Fiber Transmitter MM

OH-TX-0-850-MM

3G-SDI Simplex Fiber Transmitter 10km

OH-TX-1 LC/SC/ST

3G-SDI Simplex Fiber Transmitter 40Km CWDM

OH-TX-4-XXXX-LC

3G-SDI Simplex Fiber Transmitter 80Km CWDM

OH-TX-8-XXXX-LC

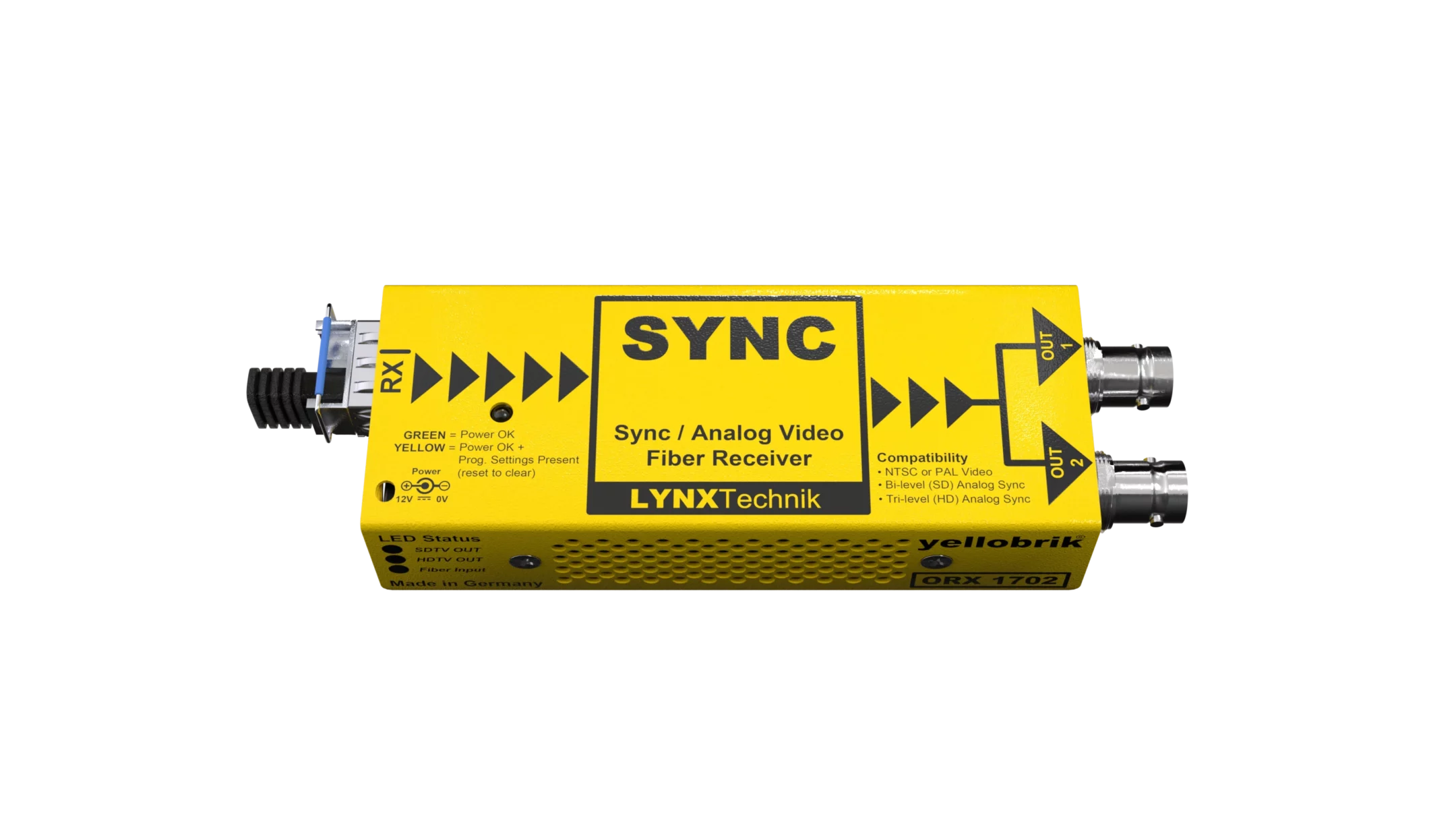

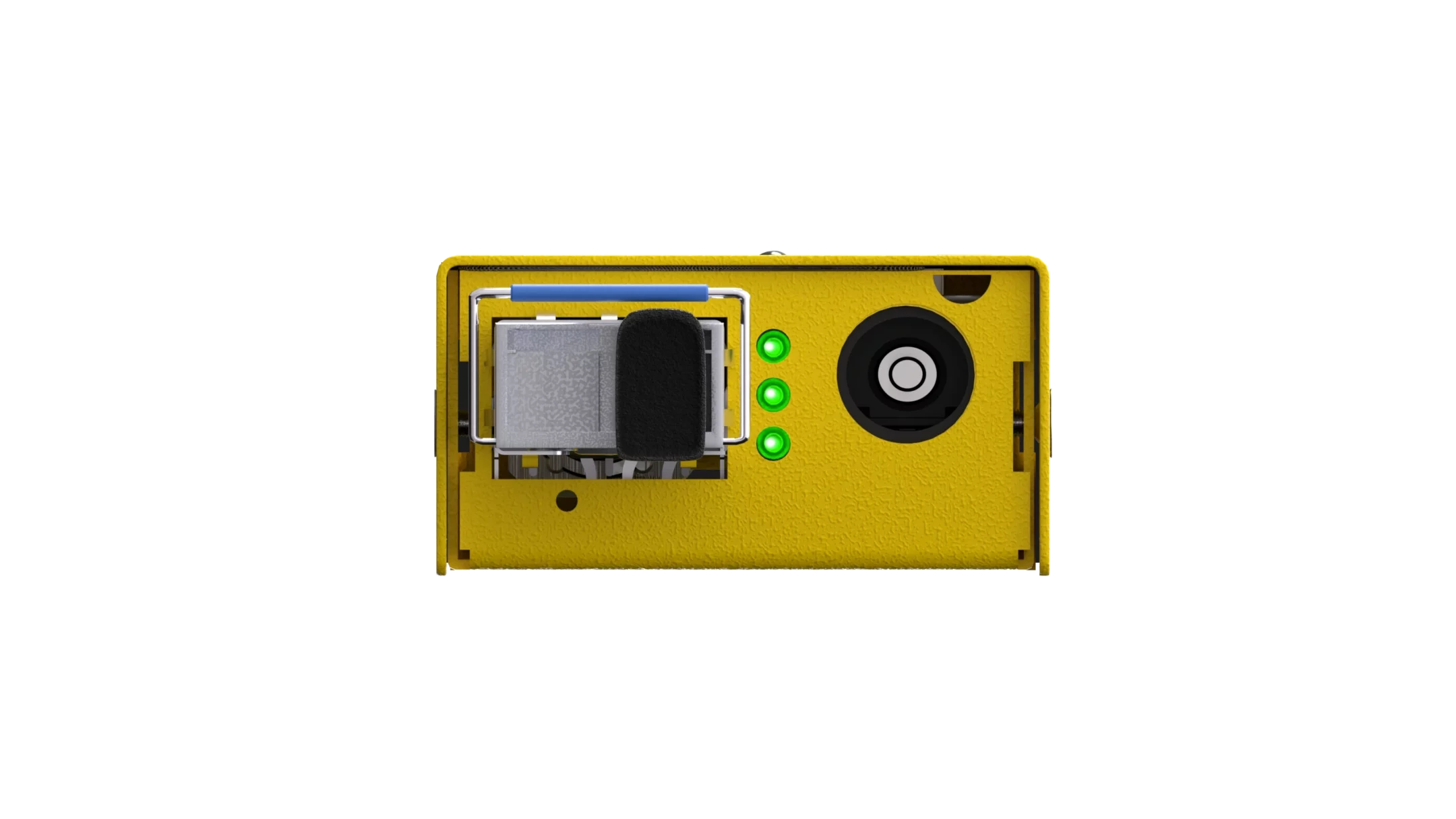

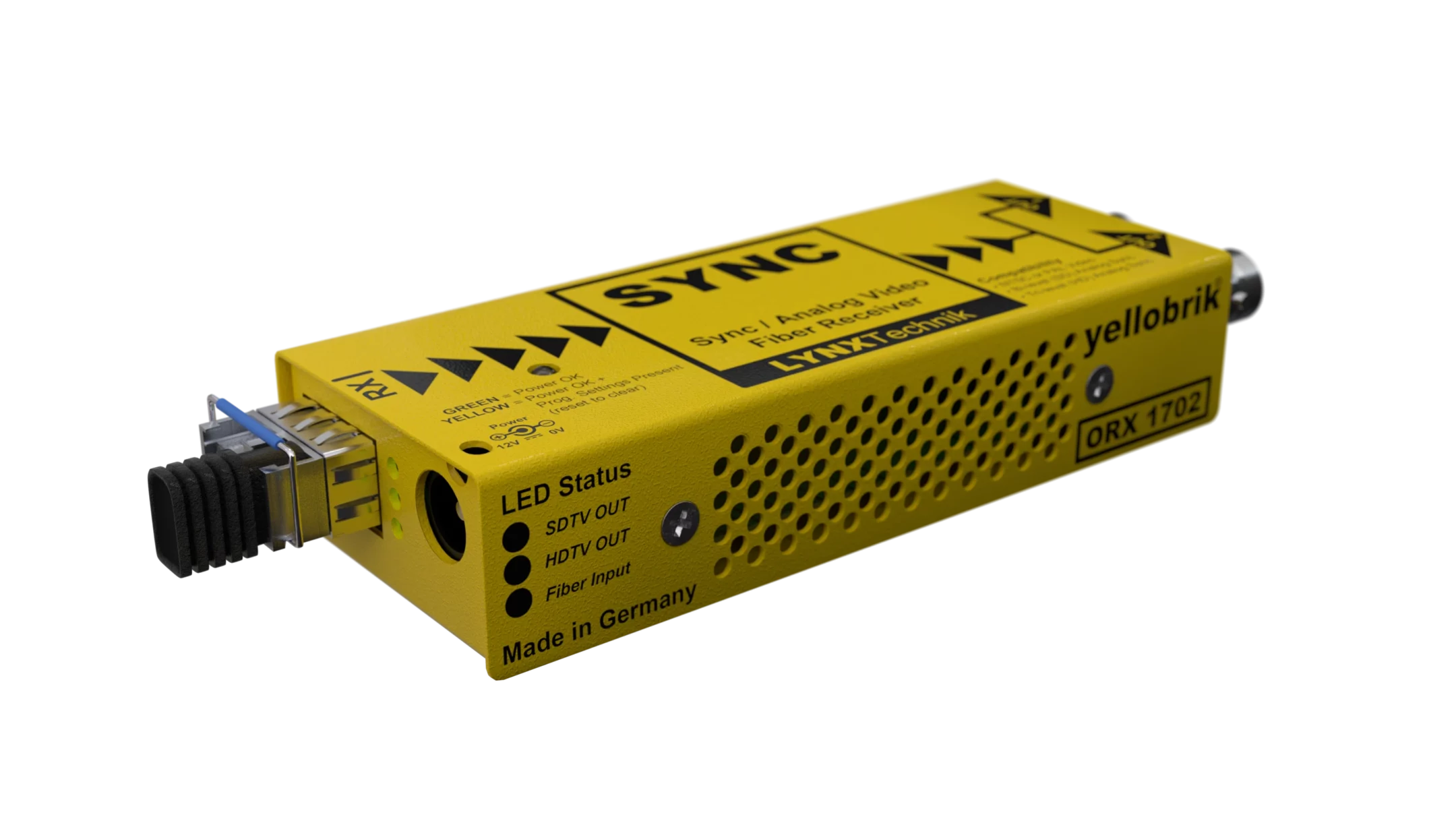

Fiber to Analog Sync/Video Receiver

ORX 1702-1

2-Channel 50/50 Fiber Splitter

OSP 1812

4-Channel 25/25/25/25 Fiber Splitter

OSP 1814

2×2 Fiber Switch

OSW 1022

yellobrik 1RU Rack Frame

RFR 1200

UPC / EAN	Model Name	Description	Comments
4250479359642	OTX 1812 LC	3G-SDI to Fiber Transmitter (Single-mode, 1310nm, LC connector,10km)	SFP Included
4250479359666	OTX 1812 ST	3G-SDI to Fiber Transmitter (Single-mode, 1310nm, SC connector, 10km)	SFP Included
4250479359659	OTX 1812 SC	3G-SDI to Fiber Transmitter (Single-mode, 1310nm, ST connector, 10km)	SFP Included
4250479359673	OTX 1812 MM	3G-SDI to Multi-mode Fiber Transmitter (MM, 850nm, LC connector)	SFP Included
4250479330191	OTX 1812 CW	3G-SDI to CWDM Fiber Transmitter (requires CWDM SFP)	No Fiber SFP

The OTX 1812 CW yellobrik must be ordered with a CWDM Fiber SFP

SFP Model	Description	Comments
OH-TX-4-XXXX-LC	CWDM 3G-SDI Simplex Transmitter SFP, 40km, LC	Coarse Wavelength
OH-TX-8-XXXX-LC	CWDM 3G-SDI Simplex Transmitter SFP, 80km, LC	Coarse Wavelength
