1GbE to Fiber Transceiver (Switch, CWDM)
The OET 5501 is a 3 ports 1GbE switch designed to extend the reach of Ethernet signals over long distances using a constant (fixed) high speed 1Gbit/s fiber connection.
The OET 5501 can be paired with another OET 5501, the yellobrik OET 1510 or any other IEEE compliant Ethernet switch with a fiber interface. When paired with one of these devices using two fiber cables, the OET 5501 provides a stable, error free optical connection between distant locations.
The OET 5501 has two standard RJ45 Ethernet ports and fiber I/O. It functions as a 3 ports Ethernet switch. Each Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit/s with automatic crossover detection.

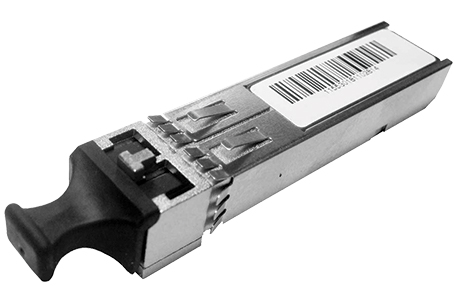

A variety of optional fiber SFPs are available (including single-mode and multi-mode and CWDM fiber with 18 wavelength selections). This allows the module to be used in multiple applications.
Fully compatible with Lynx Centraal for remote control, status monitoring and error reporting.
Key Features
Supports standard 1GbE incl. Dante Audio
3x ports Ethernet switch (1x Fiber, 2x RJ45)
Support for Jumbo Frames
Auto 10/100/1000 Ethernet speed detection
Manually force 10Mbit/s Ethernet speed if needed
Auto and Manual Ethernet crossover selection
Standard single-mode up to 10km (1310nm)
Standard multi-mode up to 550m (850nm)
CWDM 40km with 18 wavelength selections
CWDM 80km with 8 wavelength selections
Remote control, status monitoring and error reporting possible when used with APPolo control system.
Hot Swappable
