1GbE to Fiber Transceiver (switch)

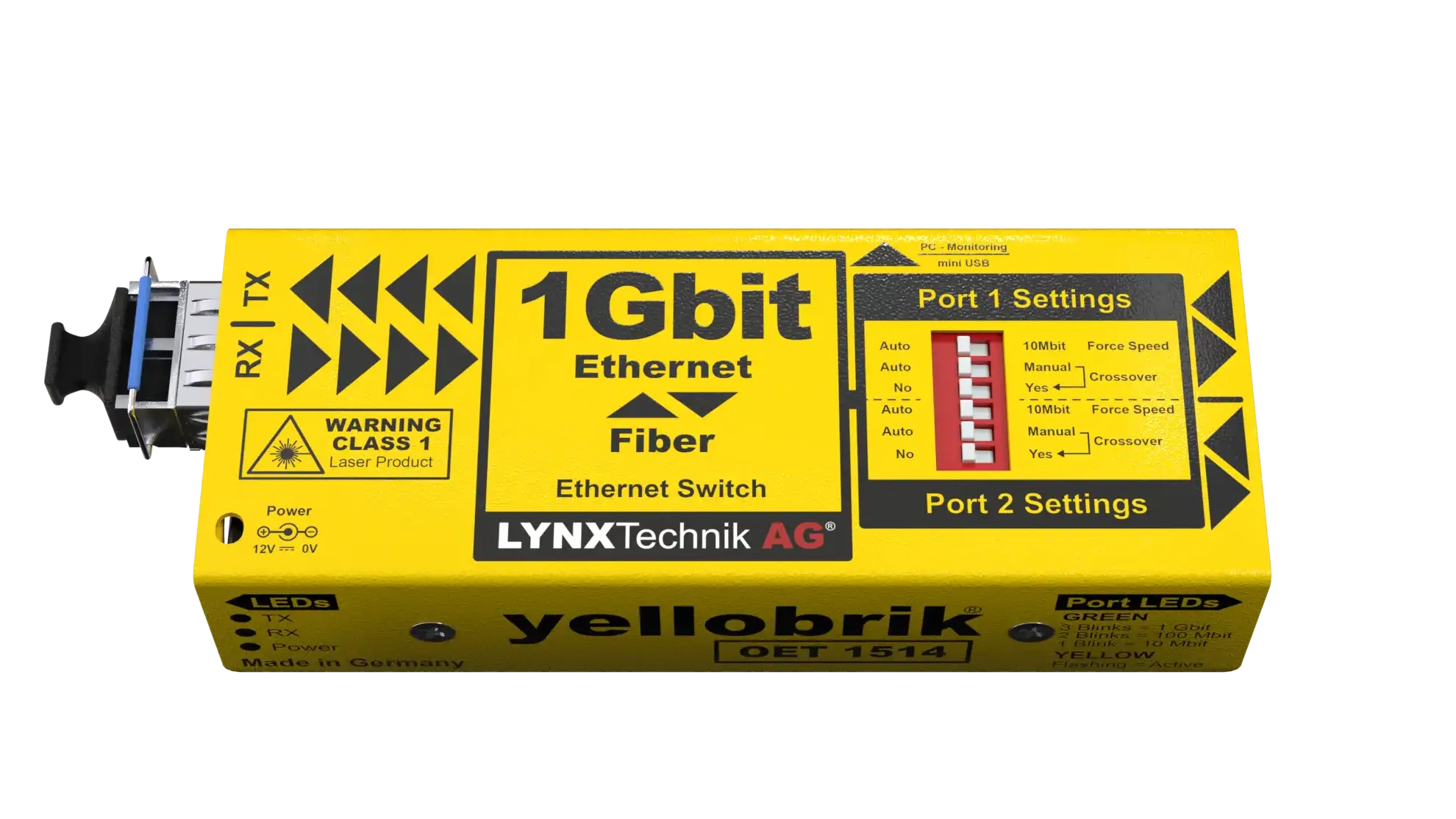

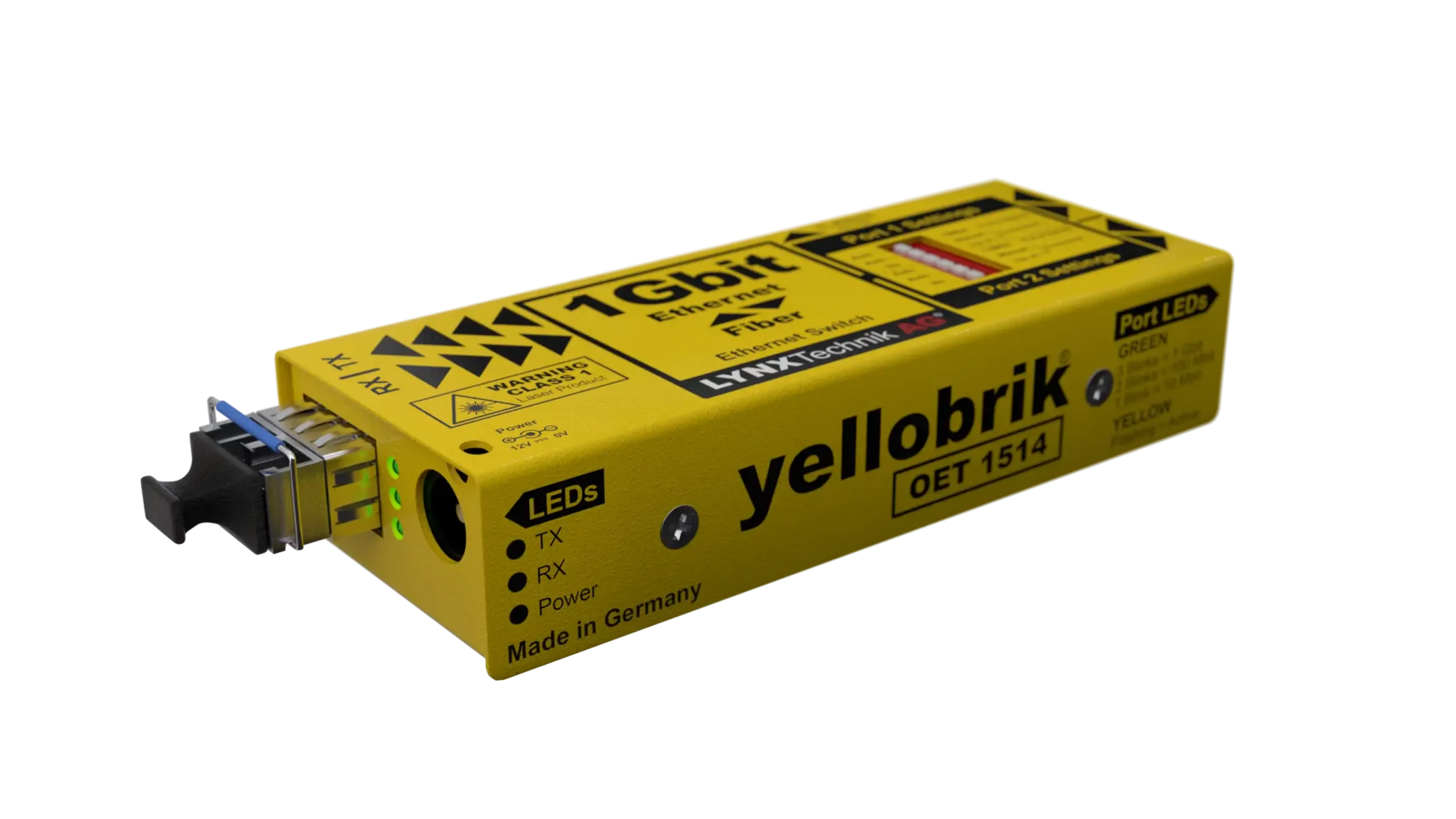

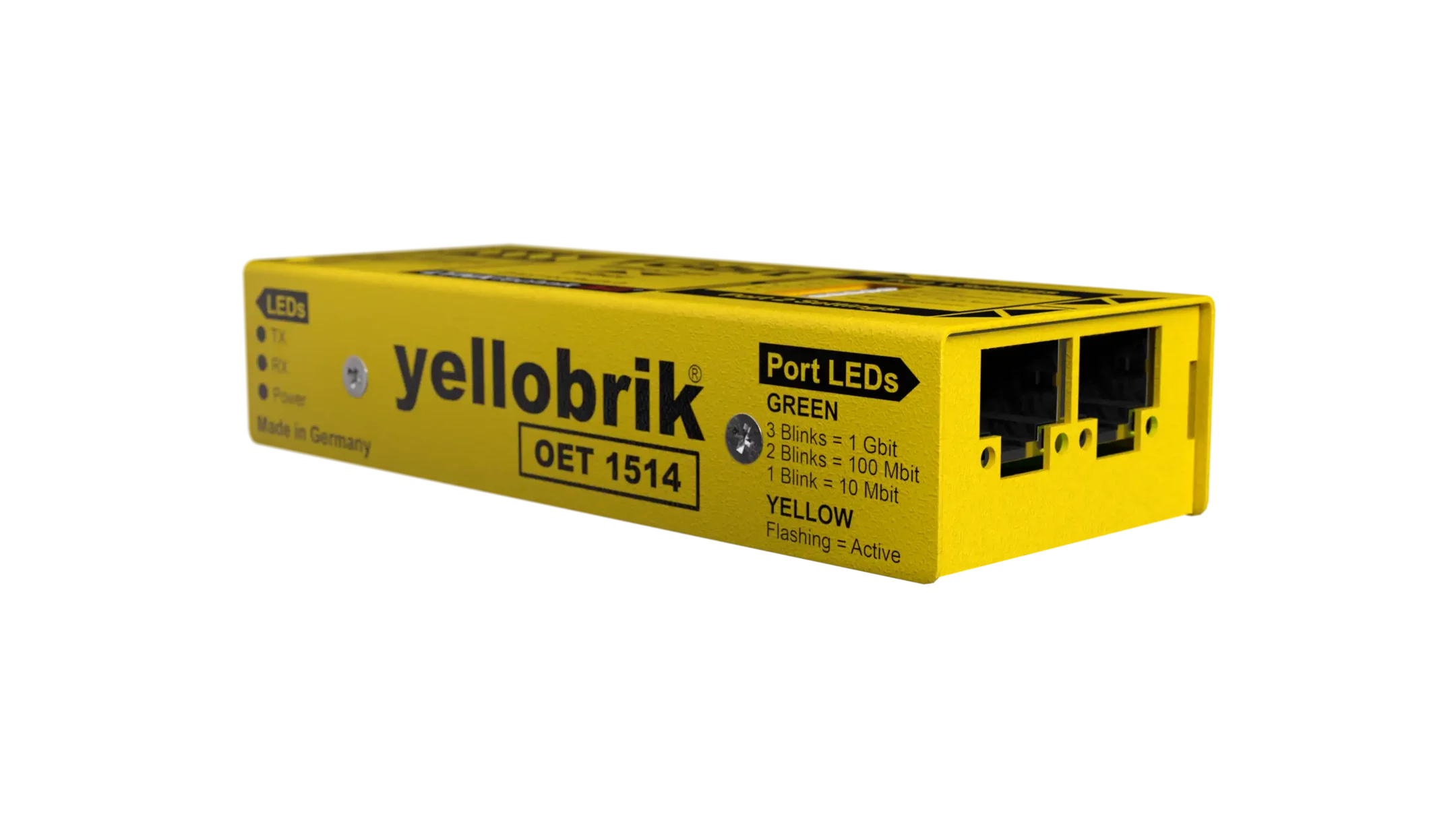

The OET 1514 is a compact 3 port Ethernet switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1 Gbit/s optical transceiver speed.
When paired with another OET 1514 at the receiving end (using two fiber links) you have a cost effective Ethernet extender system for distances up to 10km providing a stable, high speed 1Gbit/s error free optical connection between locations.

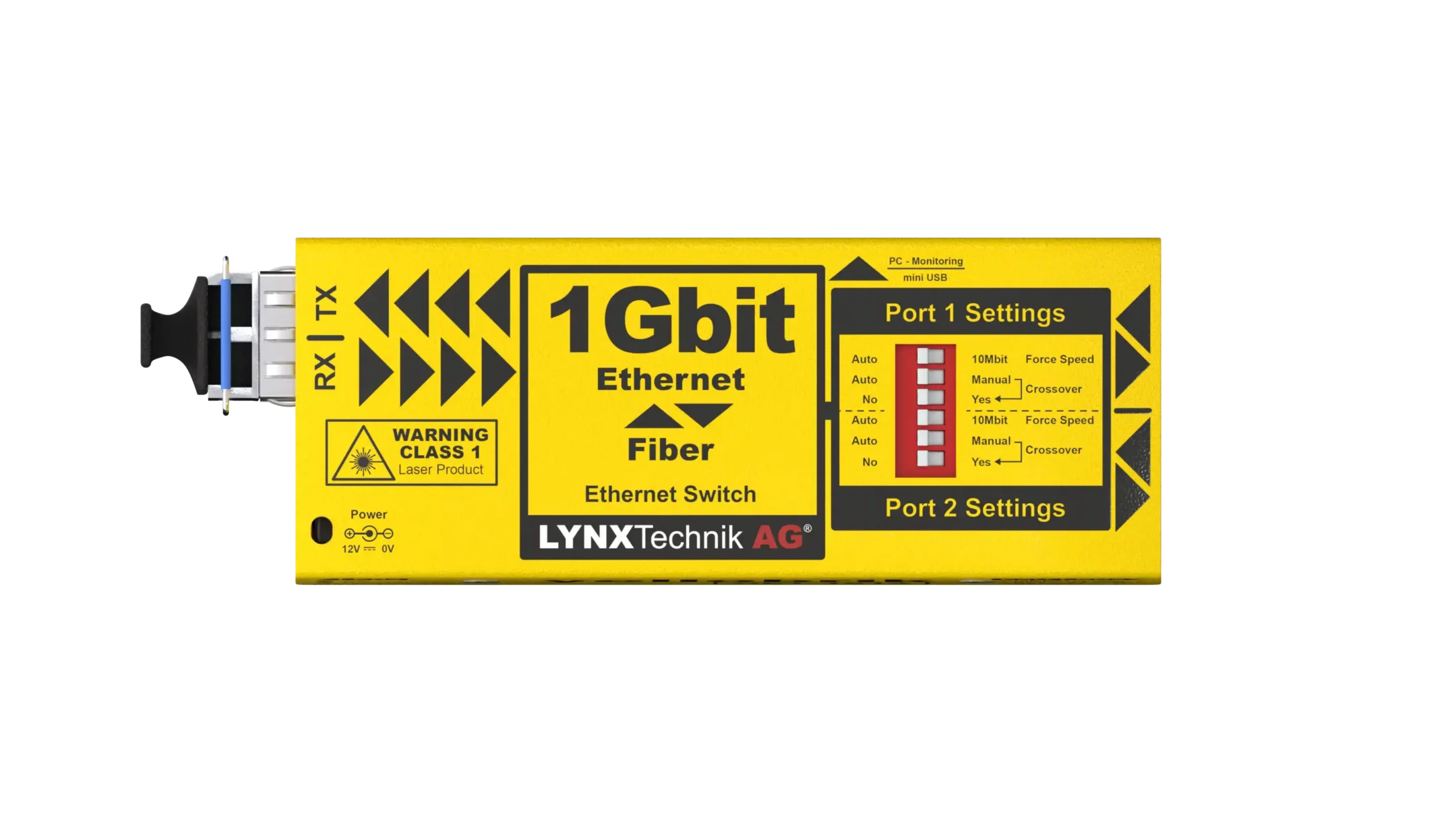

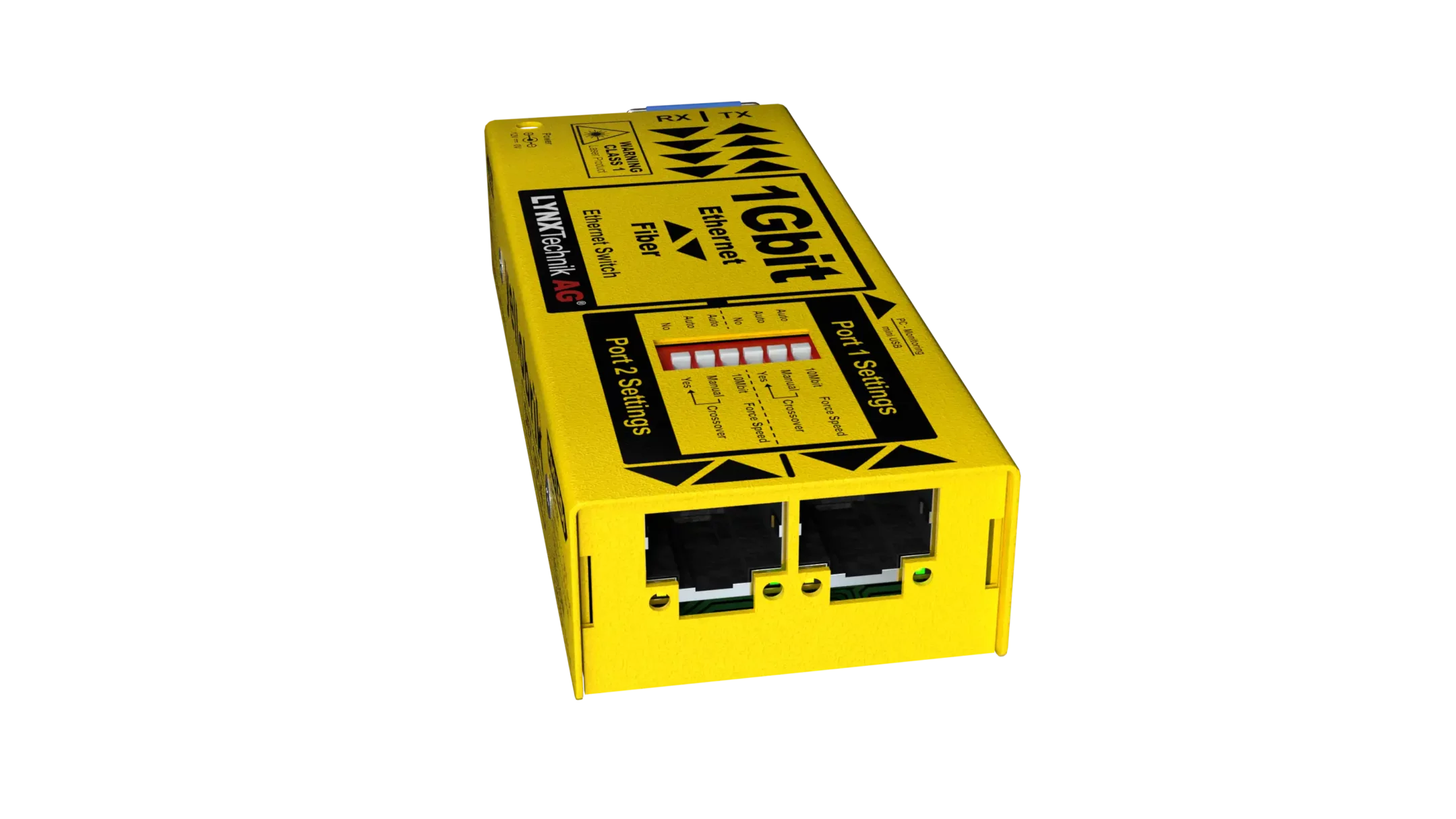

The OET 1514 has two standard RJ45 electrical Ethernet ports plus fiber I/O and functions as a 3 port Ethernet switch. For legacy system use: each electrical Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit/s, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch.
As with all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.
Key Features
Supports standard 1GbE inputs incl. Dante Audio
3x Ethernet switch (1x Optical, 2x RJ45)
Auto 10/100/1000 Ethernet speed detection
Manually force 10Mbit/s electrical speed if needed
Constant 1 Gbit/s Fiber transceiver speed
Auto or manual electrical crossover selection
Distances up to 10km(6.2 miles)* over fiber
Single-mode and Multi-mode SFP options
