CQS 1462

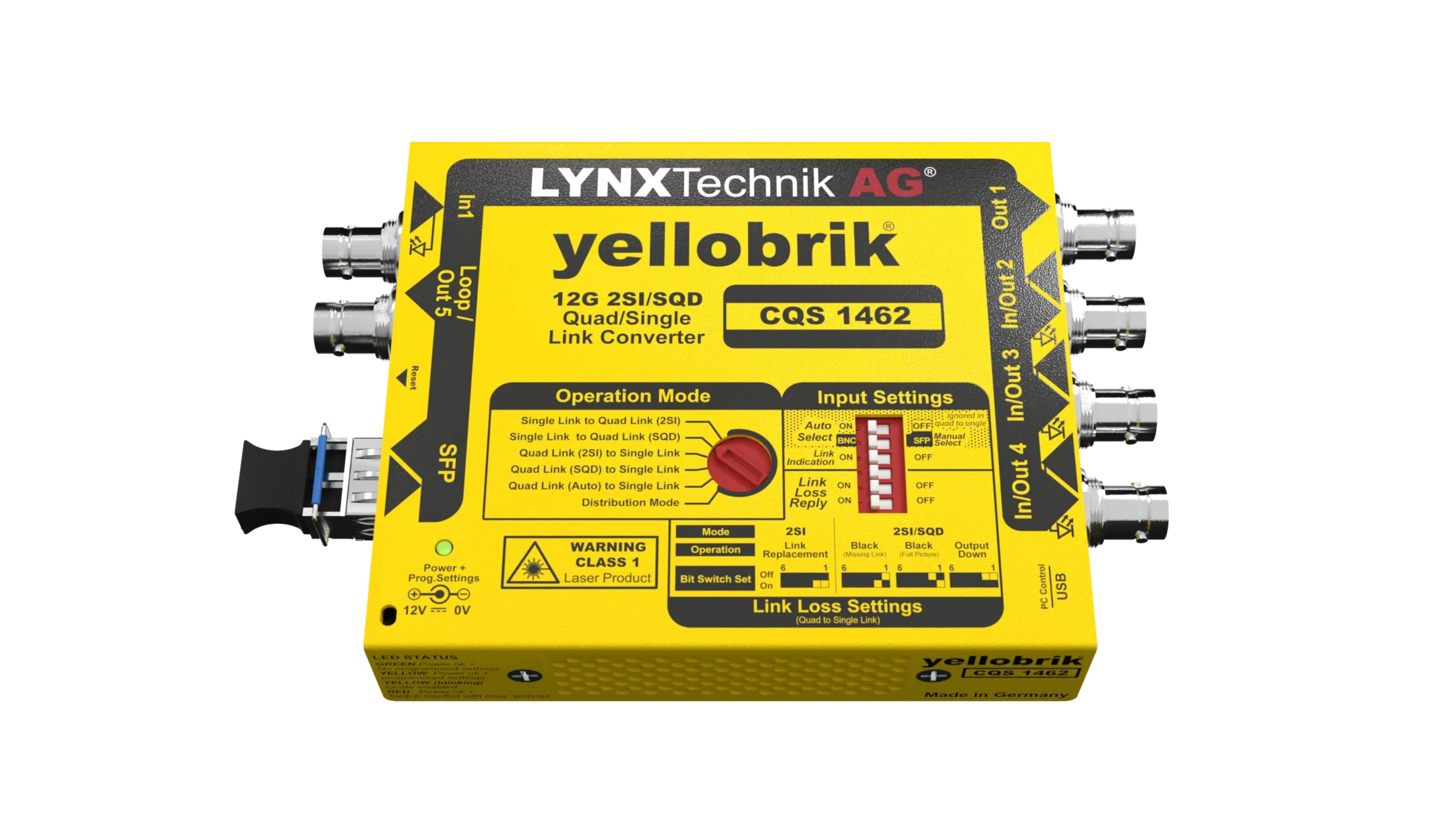

12G-SDI to 3G-SDI Bi-Directional Converter

The CQS 1462 is a compact solution designed to bridge Quad Link 3G-SDI to Single Link 12G-SDI devices with support for 2SI and SQD.

Conversion modes include:

12G-SDI to 4x 3G-SDI (Quad Link 2SI and SQD)
6G-SDI to 4x 1.5G-SDI (Quad Link 2SI and SQD)
4x 3G-SDI (Quad Link 2SI and SQD) to 12G-SDI
4x 1.5G-SDI (Quad Link 2SI and SQD) to 6G-SDI
Auto Quad Link to Single Link
Distribution Amplifier: 1×6 (1×5 + Loop-In) supported for all formats

Operational mode can be selected from the local rotary switch or via control software.
Link identification is possible through on-screen overlays which can be helpful for connectivity problems or link loss.

The module is suitable for all SMPTE standards ranging from 1.5G-SDI to 12G-SDI (SMPTE 292M, 424M, 2081 and 2082).

The 12G-SDI SFP cage offer optional fiber connectivity for both CWDM and non-CWDM variants.

The module is fully compatible with yelloGUI and LynxCentraal. It can be configured, controlled and updated using Windows or MacOS. As with all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.

Key Features

Support 12G/6G/3G/1.5G-SDI Standards
Up to 4K YCbCr/RGB 4:4:4
Single to Quad Link and Quad to Single Link
2SI and SQD conversion in both directions
SFP to BNC 1x5 Distribution Mode
BNC 1x4 Distribution Mode + Loop and SFP Out
Automatic Link Loss Reply Options for 2SI/SQD

Video Formats

 • 4K  4096x2160p  23.98, 24, 25, 29.97, 30, 50, 59.94, 60
 • UHD 3840x2160p  23.98, 24, 25, 29.97, 30, 50, 59.94, 60
 • 2K 2048x1080p   23.98, 24, 25, 29.97, 30, 50, 59.94, 60
 • HD 1920x1080p   23.98, 24, 25, 29.97, 30, 50, 59.94, 60
 • HD 1920x1080i   -- --  --  --  -- --  --  50, 59.94, 60

Video Input Digital

4x 12G-SDI BNC (12G/6G/3G/1.5G-SDI)
YCbCr 4:2:2 10-bit
YCbCr/RGB 4:4:4 10, 12-bit
3G-SDI Level A or B Dual Link
Quad Link 2SI and SQD

Video Output Digital

5x 12G-SDI BNC (12G/6G/3G/1.5G-SDI)
YCbCr 4:2:2 10-bit
YCbCr/RGB 4:4:4 10, 12-bit
3G-SDI Level A or B Dual Link
Quad Link 2SI and SQD

Fiber I/O

Optional plug-in SFP for optical SDI input/output
12G-SDI
Simplex Receiver, Simplex Transmitter or Duplex Transceiver

12G-SDI Simplex Fiber Receiver 10km

OH-RX-12G-LC

12G-SDI Fiber Receiver 10km

OH-RX-12G-ST

12G-SDI Duplex Fiber Transceiver 10km CWDM

OH-TR-12G-XXXX-LC

12G-SDI Simplex Fiber Transmitter 10km

OH-TX-12G-LC

12G-SDI Fiber Transmitter 10km

OH-TX-12G-ST

12G-SDI Simplex Fiber Transmitter 10km CWDM

OH-TX-12G-XXXX-LC

12G-SDI Simplex Fiber Transmitter 40km with CDR

OH-TX-4-12G-LC

12G-SDI Simplex Fiber Receiver 40km

OH-RX-4-12G-LC

12G-SDI Simplex Fiber Transmitter 40km CWDM

OH-TX-4-12G-XXXX-LC

12G-SDI 1×7 Distribution Amplifier

DVD 1417

2-Channel 12G-SDI 1×3 Distribution Amplifier

DVD 1423

Rack Controller

RCT 1012

yellobrik 1RU Rack Frame

RFR 1200

Cooling Rack Tray

RFF 1200

UPC / EAN	Model Name	Description	Comments
4250479327832	CQS 1462	12G-SDI to 3G-SDI Bi-Directional Converter with 2SI & SQD Support	No Fiber SFP
