4-Channel Bi-Directional 12G-SDI to Fiber Converter

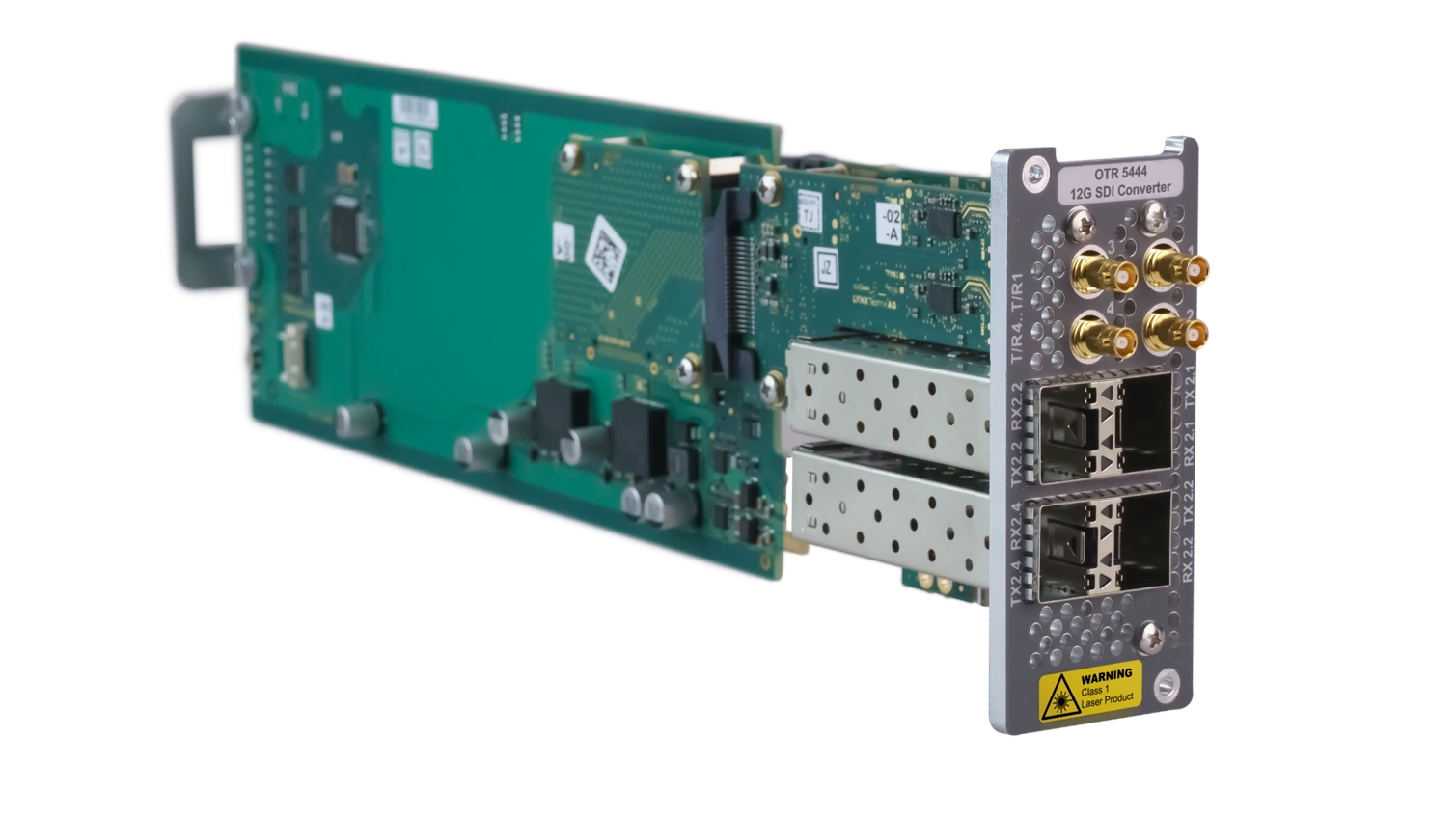

The OTR 5444 is a 4-Channel bi-directional 12G-SDI to Fiber suitable for video signals up to 4096x2160p 60Hz. It has four independent channels with automatic input clock rate and signal presence detection.
It consists of four bi-directional 12G-SDI high-density micro BNC interfaces and four 12G-SDI fiber inputs and four 12G-SDI fiber outputs arranged in the optical TR slots.
This module is ideally suited for demanding high-quality broadcast video applications.
The OTR 5444 is a card module that offers high quality, modularity and flexibility in a small form factor ideal for space constraint applications. Like other 5000 series card modules, it is fully compatible with Lynx Centraal for remote control, status monitoring and error reporting.
Note: A maximum of 8 OTR 5444 HO cards can be installed on an RFR 5018 rack frame. It should not be fitted into slot 1 or 2 as it would block the RFR internal cross flow fan at the rear.
Key Features
Supports 12G/6G/3G/1.5G-SDI
Bi-Directional 12G-SDI to Fiber converter
Can be used to Send/Receive 8K Quad
4x Optical Transceivers (TR)
4x High-density BNCs (TR)
Reclocking mode for each 12G-SDI signals
Input Status LED
Remote control, status monitoring and error reporting when used with LYNX Appolo Control System
Hot Swappable
