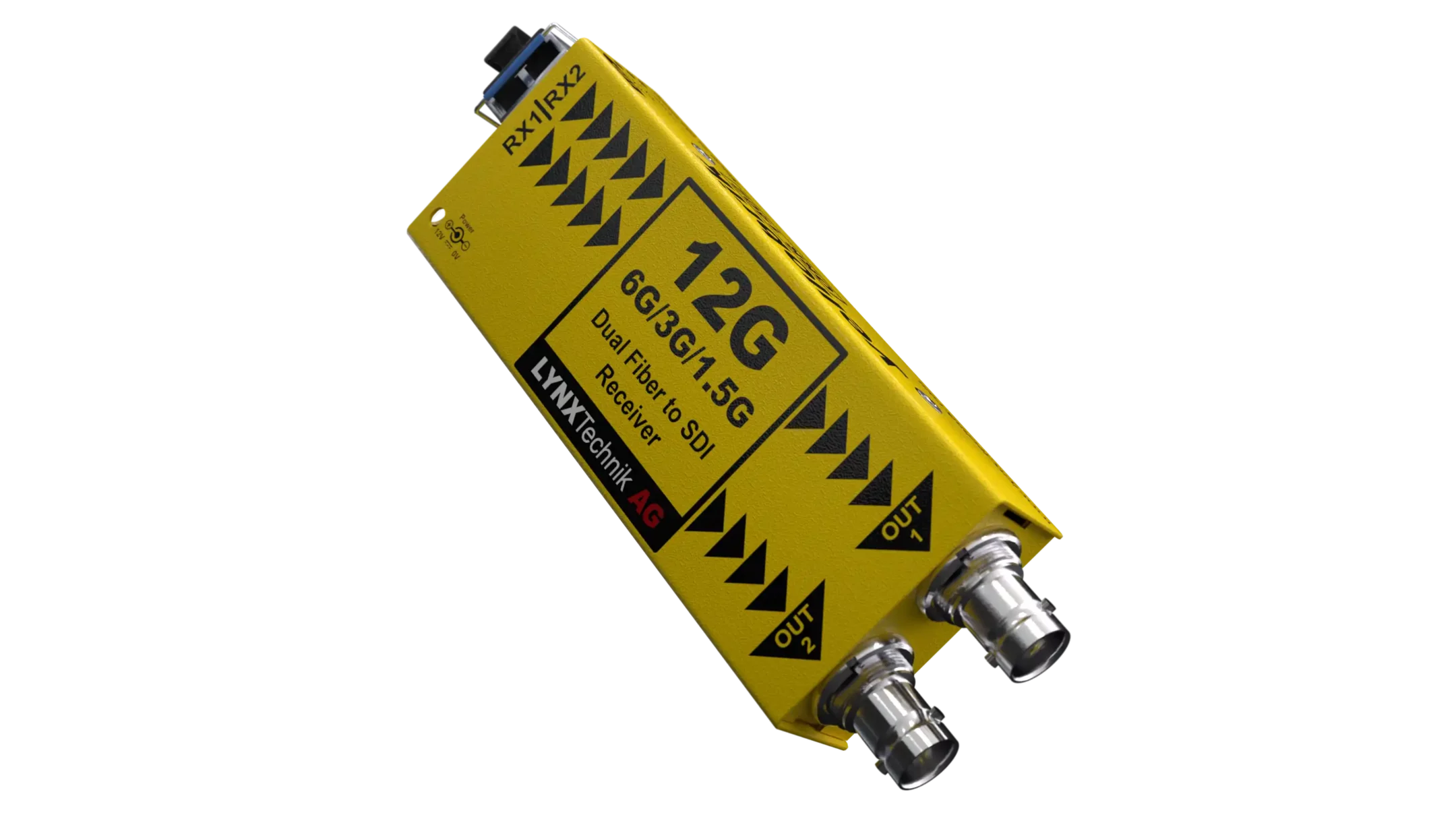

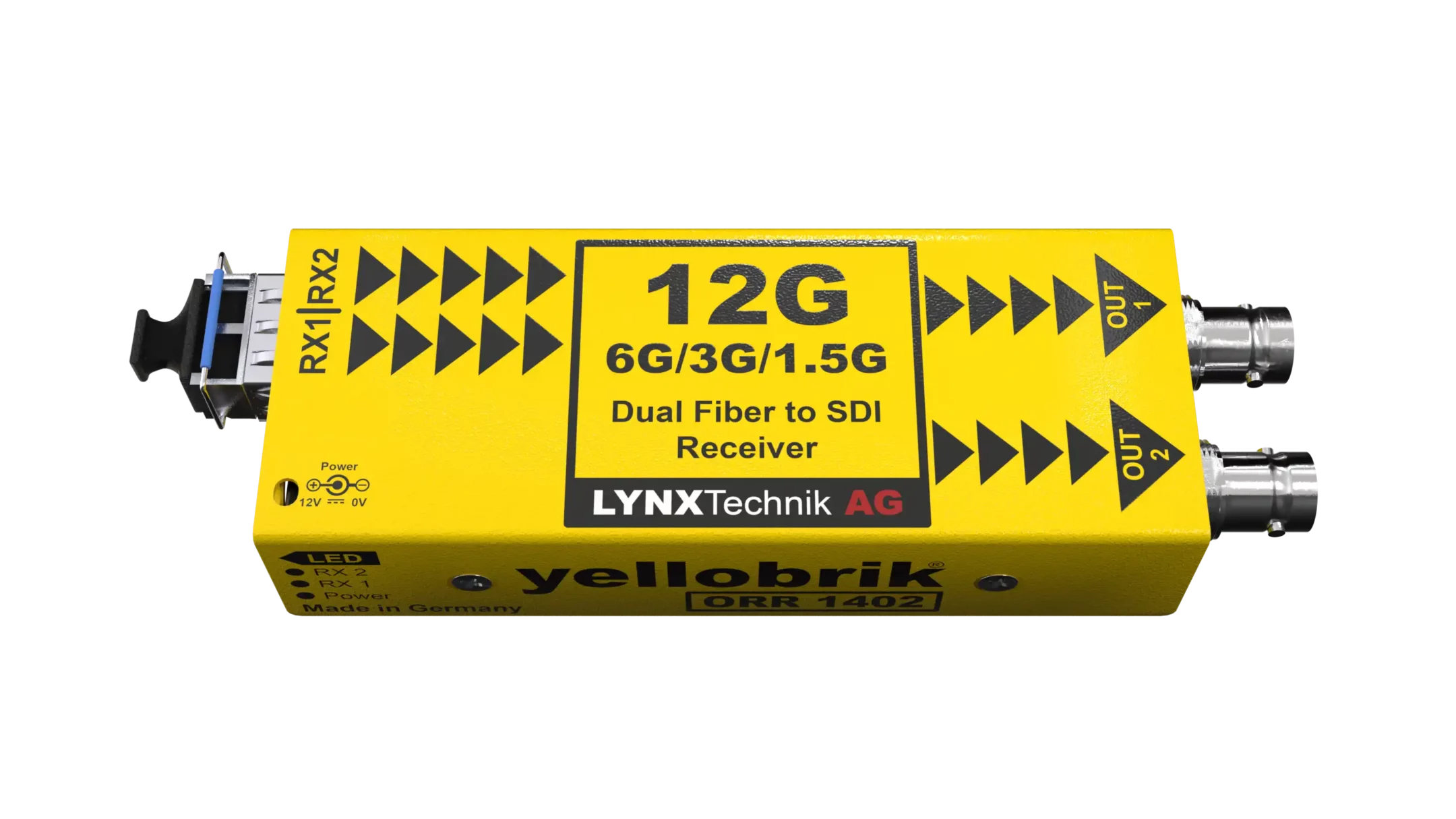

2-Channel Fiber to 12G-SDI Receiver
The ORR 1402 is a compact 2-Channel Fiber to 12G-SDI receiver designed to overcome the limitations of distributing uncompressed, broadcast-quality video signals over long distances.
When paired with a 12G-SDI optical transmitter (e.g. yellobrik OTT 1412, OTX 1410 etc), it becomes a cost-effective optical transmission/ receiver system for 12G-SDI signals up to 4096×2160 60Hz while preserving full uncompressed quality.
The ORR 1402 has two completely independent 12G-SDI channels. Each will autodetect and re-clock any SDI optical input before converting it to electrical SDI. The module is fully compatible with 3G Level A and Level B formats and accepts both 1310 nm single-wavelength and CWDM optical inputs.
As with all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.
Key Features
2-Channel 12G-SDI Receiver
Support 12G/6G/3G/1.5G-SDI Standards
Auto Reclocking
Error free optical reception
1260nm to 1620nm wavelength input range
Compatible with Standard 1310 nm and CWDM optical inputs

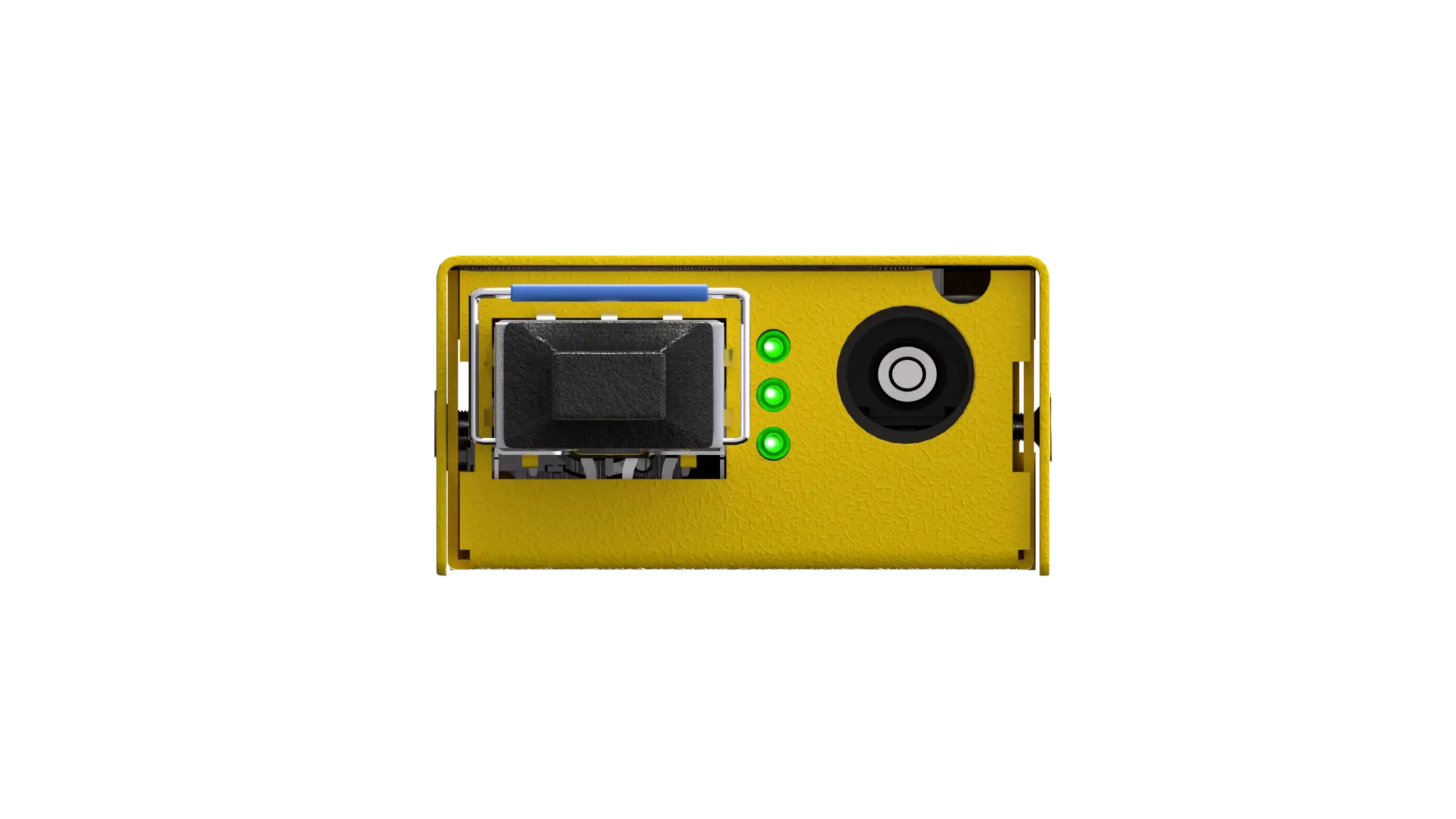

Duplex LC Single-mode fiber connection
Supports hot swapping and hot plugging
