DVD 5480 HO

12G-SDI 1×4 Distribution Amplifier with Fiber I/O

The DVD 5480 HO module is a high performance 12G-SDI distribution amplifier with a Single Link to Quad Link 2SI conversion on optical and electrical interfaces. This module can be used in various applications depending on user settings:

12G-SDI Distribution amplifier
12G-SDI Single Link to Quad Link 2SI converter (Demux mode)
Quad Link 2SI to 12G-SDI Single Link Converter (Mux mode)
8K SDI to Fiber converter

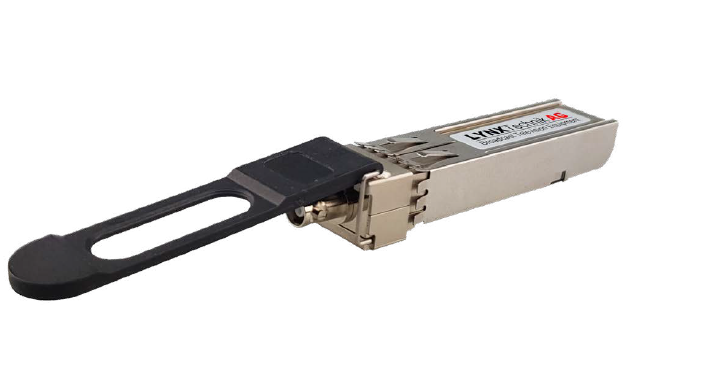

The module provides four fiber inputs and four fiber outputs in four pairs of optical TR SFP cages (Transmitter/Receiver, SFPs are optional). In addition, four bi-directional micro BNC inputs/outputs (signal flow direction can be set by the user) are available for optical to electrical conversion.

DVD 5480 HO is part of the 5000 series of card modules, which offers high quality, modularity and flexibility in a small form factor ideal for applications where space is at a premium. It is ideally suited for demanding high quality broadcast video applications.

Fully compatible with Lynx Centraal for remote control, status monitoring and error reporting.

Note: A maximum of 8 DVD 5480 HO cards can be installed on the RFR 5018 rack frame. It should not be fitted into slot 1 or 2 as it would block the RFR internal cross flow fan at the rear.

Key Features

Supports four 12G/6G/3G/1.5G-SDI
1x8 12G-SDI Distribution Mode (4x microBNC and 4x Fiber Outputs)
4-Channel 1x1 12G-SDI microBNC to Fiber converter
2-Channel 12G-SDI to 3G-SDI Quad Link 2SI converter
2-Channel 3G-SDI Quad Link 2SI to 12G-SDI converter
1-Channel 12G-SDI Quad Link to 8K over single link Fiber
1-Channel 8K Single Link Fiber to 12G-SDI Quad Link converter
Input Status LED
Remote control, status monitoring and error reporting when used with Lynx APPolo Control system
Hot Swappable

Video Formats

 • 4K  4096x2160p  23.98, 24, 25, 29.97, 30, 50, 59.94, 60
 • UHD 3840x2160p  23.98, 24, 25, 29.97, 30, 50, 59.94, 60
 • 2K 2048x1080p   23.98, 24, 25, 29.97, 30, 50, 59.94, 60
 • HD 1920x1080p   23.98, 24, 25, 29.97, 30, 50, 59.94, 60
 • HD 1920x1080i   -- --  --  --  -- --  --  50, 59.94, 60

Video Input/Output Digital

4x Bi-Directional 12G-SDI microBNC (12G/6G/3G/1.5G-SDI)
RGB 4:4:4
YCbCr 4:4:4/4:2:2
8, 10, 12-bit
3G-SDI Level A or B Dual Link
UHD Quad Link 2SI

Fiber Inputs

2x Duplex Receiver SFP (4 inputs)
12G-SDI
Duplex Single-mode
LC connector

Fiber Outputs

2x Duplex Transmitter SFP (4 outputs)
12G-SDI
Duplex Single-mode
LC/ST/SC Connection
